Product Descriptions:

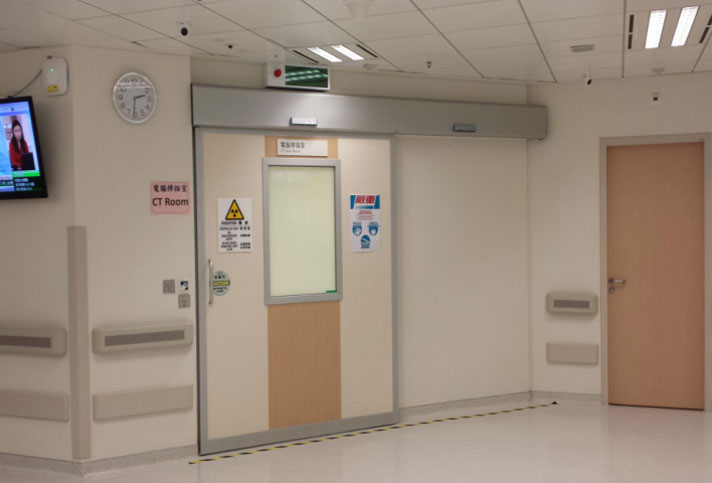

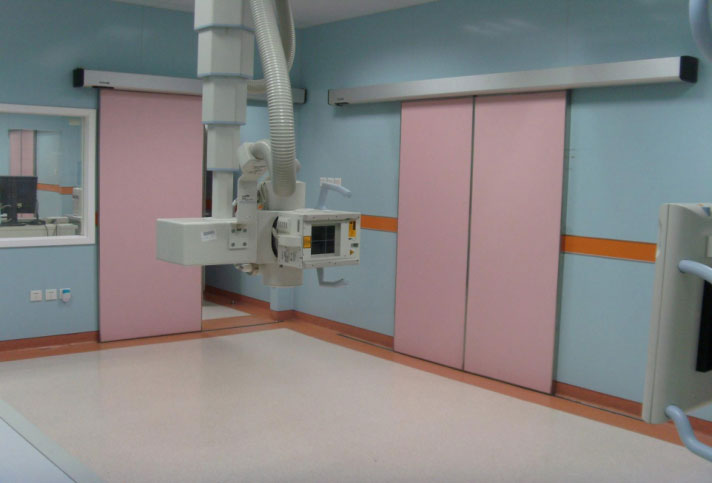

• Suitable for various radiological environments such as hospital CT rooms, X-ray rooms, and nondestructive testing rooms.
• Equipped with a heavy-duty brushless DC motor, ensuring smooth, quiet, and reliable operation.
• Power beam and door body are externally mounted onto the wall for quick and simple installation.
• Elegant and aesthetic door design with multiple styles to meet diverse customer needs.

Technical Parameters

Parameter Item	Description
Door Leaf Steel Thickness	1.5mm with internal lead plate lining
Door Leaf Thickness	Approx. 50mm
Aluminum Alloy Frame Thickness	2mm
Closing Speed	200-600mm/s (adjustable)
Opening Speed	200-600mm/s (adjustable)
Power Consumption	< 250W
Anti-Collision Strip	Optional; stainless steel waist rail available upon request
Access Control Configuration	Default foot sensor switch (optional: card/password access, sensor switch, radar sensor, etc.)

Product Features

• Lead plate lining with 2-5mmpb lead equivalent, effectively blocking X-rays and preventing radiation leakage.
• Door panel made of galvanized steel/304 stainless steel with electrostatic spray coating, providing rust resistance, moisture resistance, corrosion resistance, and easy cleaning.
• Sealing strips installed on door profiles and frames to meet cleanliness requirements in medical environments.
• High-quality drop-down sealing mechanism ensures air tightness, compliant with GB/T7106-2008.
• Uniform opening/closing speed with soft buffering at the end of motion.
