The curtain fabric is made of imported high-strength wear-resistant PVC-coated base fabric. The frame is bent from thick cold-rolled steel plates and treated with high-quality anti-rust spraytechnology. The bottom is equipped with elastic PVC base fabric, which closely fits uneven surfaces. They are available in multiple specifications and colors, and close automatically at high speed. Suitable for area isolation in pharmaceutical, food, electronics, printing, textile industries, and factories, providing heat insulation, insect prevention, dust prevention, sound insulation, fire prevention, and odor prevention.
Product Description:
System Components:
Door Body Material: High-strength polyester fiber (soft curtain) Viewing window: Transparent PVC (full-width strip) Thickness: 0.8-1.2 mm Colors: Orange, blue, white, mesh (others optional)
Track Material: Cold-rolled steel with baking varnish finish or aluminum alloy
Roller Shaft and Accessories Composed of the roller shaft and related accessories.
Industrial Motor and Control System Motor: 0.55-2.2KW, 380V/220V, 50Hz Components: Logic control board, travel control mechanism, relays, control switches Interlock function: Prevents simultaneous opening of two doors (allows simultaneous closing)
Safety System
Infrared protection device + contact-sensitive safety edge (door bottom) Optional: Metal detection loop or bilateral radar sensing system
Accessories
Side frames, top frames, cover plates, fastening screws
Rapid Rolling Doors

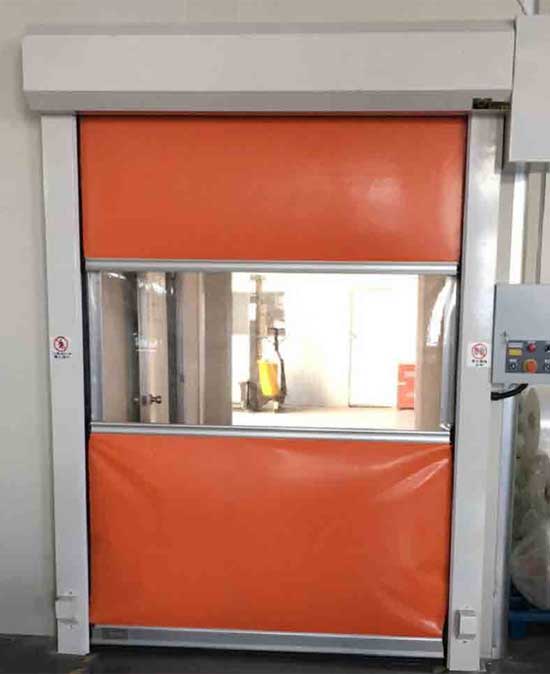

Product Name: GG Door Industrial Factory High-Speed Rolling Shutter Door
Product Functions: Heat insulation, dust prevention, insect prevention, odor isolation
Product Features:
The curtain fabric is made of imported high-strength wear-resistant PVC-coated base fabric. The frame is bent from thick cold-rolled steel plates and treated with high-quality anti-rust spraytechnology. The bottom is equipped with elastic PVC base fabric, which closely fits uneven surfaces. They are available in multiple specifications and colors, and close automatically at high speed. Suitable for area isolation in pharmaceutical, food, electronics, printing, textile industries, and factories, providing heat insulation, insect prevention, dust prevention, sound insulation, fire prevention, and odor prevention.
Product Description:
System Components:
Material: High-strength polyester fiber (soft curtain)
Viewing window: Transparent PVC (full-width strip)
Thickness: 0.8-1.2 mm
Colors: Orange, blue, white, mesh (others optional)
Material: Cold-rolled steel with baking varnish finish or aluminum alloy
Composed of the roller shaft and related accessories.
Motor: 0.55-2.2KW, 380V/220V, 50Hz
Components: Logic control board, travel control mechanism, relays, control switches
Interlock function: Prevents simultaneous opening of two doors (allows simultaneous closing)
Infrared protection device + contact-sensitive safety edge (door bottom) Optional: Metal detection loop or bilateral radar sensing system
Side frames, top frames, cover plates, fastening screws
